LC-ESP32-10REV 2020Electronics
World's Smallest ESP32
The smallest ESP32 in the world: a 10 × 10 × 10 mm cube of 6 stacked 4-layer PCBs, fully functional without any extra electronics to program or use it.
3Detailed description

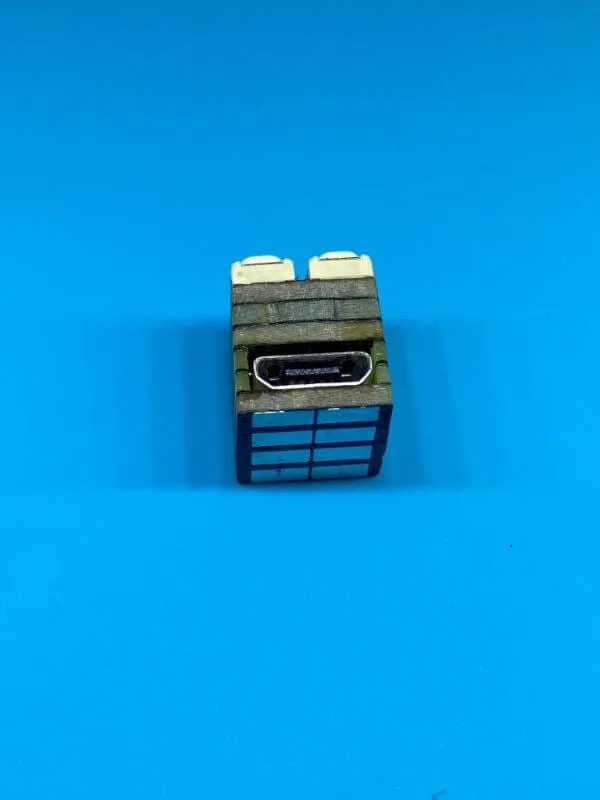

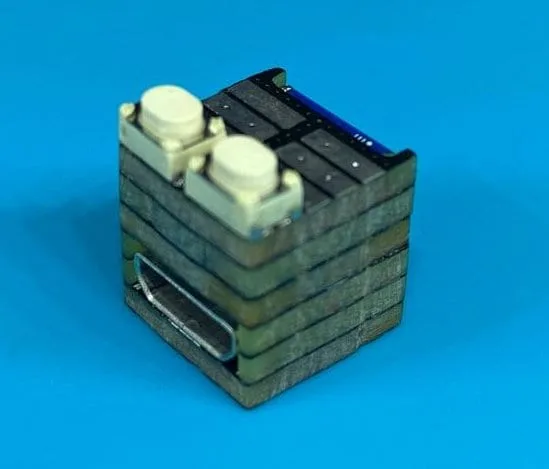

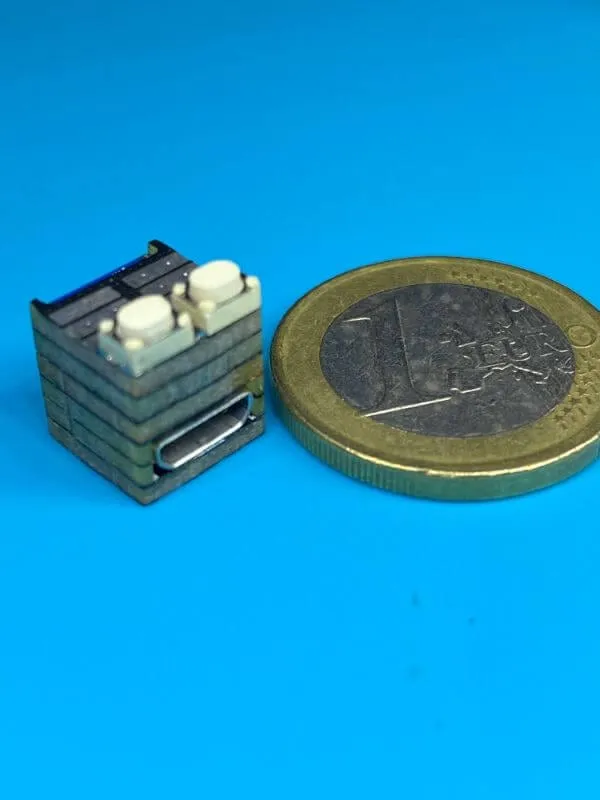

This is the smallest ESP32 in the world (10 × 10 × 10 mm), fully functional without the need for additional electronics for programming or usage.
Every electronic component of the device is inside its own PCB (except the buttons).
It has 6 PCBs on top of each other, each one with 4 layers — a total of 24 layers.
It has:

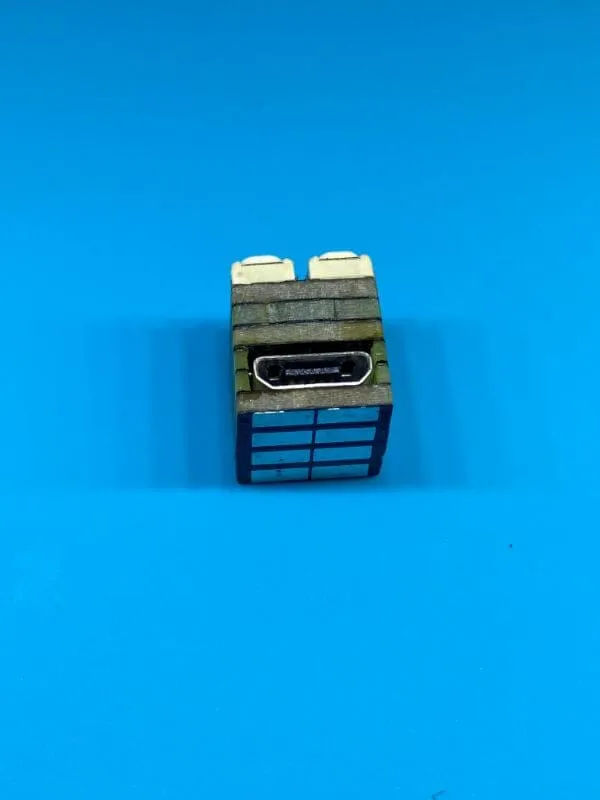

- Micro USB
- DC-DC converter with current capacity up to 1 A
- FTDI chip for USB-UART conversion
- ESP32-PICO-D4 MCU
- 2 buttons
- 2.2 dBi antenna for Wi-Fi and Bluetooth
- A few more components like capacitors, resistors and coils

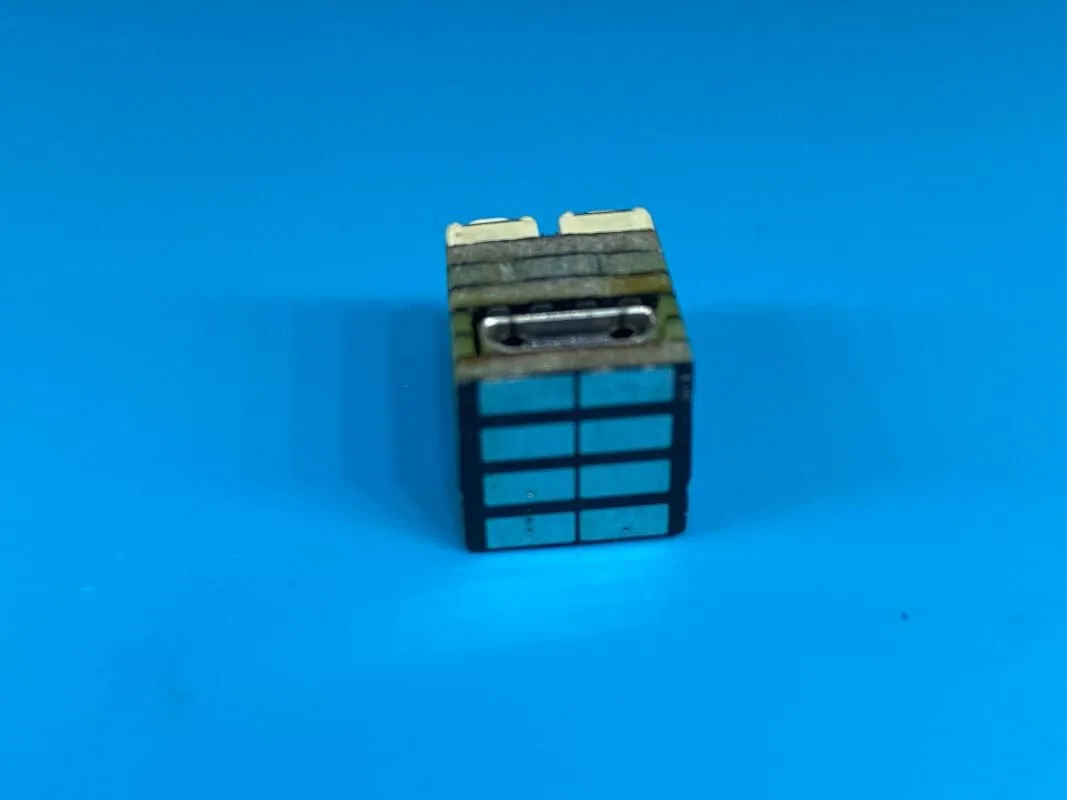

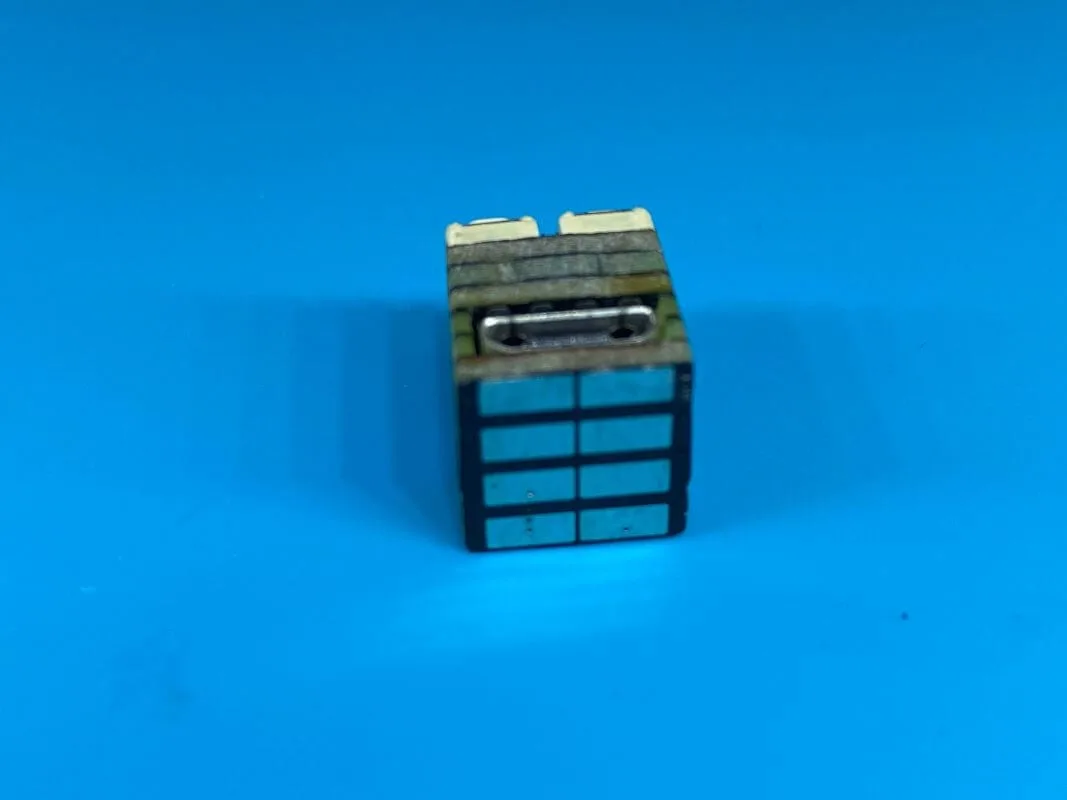

- 18 pads for GPIO / power
- 8 of which have 2.54 mm spacing, so you can solder headers for direct breadboard use

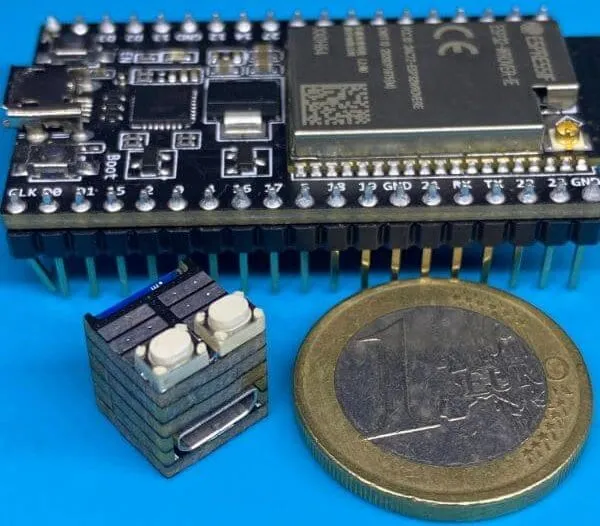

The quality of the Wi-Fi signal is exactly the same as the ESP32-WROVER-IE (pictured next to it in the gallery), which is impressive!
